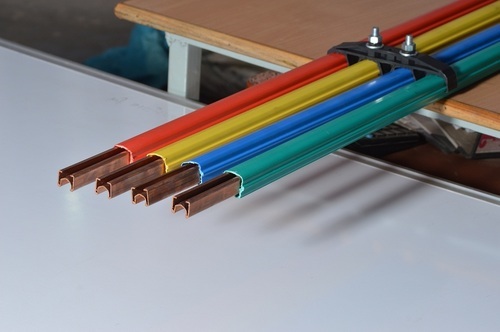

Bolt Jointed Copper Busbar System

550.00 - 2000.00 INR/Piece

Product Details:

  • Length 5-10 Meter (m)
  • Color Brown
  • Usage Electronic Industry
  • Condition New
  • Lifting Capacity 150 Kilograms (kg)
  • Power Source Electric
  • Voltage 240 Volt (v)
  • Supply Ability : 100 Piece Per Day
  • Click to view more
X

Price And Quantity

  • 1 Piece
  • 550.00 - 2000.00 INR/Piece

Product Specifications

  • Electronic Industry
  • 240 Volt (v)
  • Electric
  • Yes
  • 5-10 Meter (m)
  • New
  • 150 Kilograms (kg)
  • Brown

Trade Information

  • 100 Piece Per Day
  • 1 Week
  • All India

Product Description



Since Copper is flexible and Bendable, it tends to be framed into a wide range of sorts of shapes. It likewise has a high warm conductivity to spread out the warmth equally. Because of every parameter, copper is the most preferred material to be utilized in Bolt Jointed Copper Busbar System. It is a lot of better than aluminum busbar as far as conductivity yet the exchange-off here is weight and cost. Since the thickness of copper is lifted, it is progressively strong to outside mechanical harm and disturbances.



The provided Bolt Jointed Copper Busbar System will move significant measures of current; consequently, there will be a little power lost percentage in transmission and changed over into heat that will be lost to the outer condition through radiation and convection. The customers are suggested to go through the significant specialized parameters of Copper that is utilized in our busbar system:



  • Melting point: 1082 Degrees
  • Boiling point: 2564 Degrees
  • Thickness: 8.96 g/cm 3
  • Electrical Resistivity: 16.78 nΩMeter



Technical Data Sheet :

  • Type : W Type Bolt Joint DSL Bus bar
  • Capacity : 100 to 800 Amp
  • Supply : 415 Volt , 3 Phase + Neutral
  • Frequency : 50 Hz
  • Standard Conductor Length : 4.5 Mtrs



Features :

  • Touch proof, no exposed live part.
  • Quick & easy Installation.
  • Insulating cover shaped to shed from water and dust.
  • Single Pole individually Conductors.
  •  Suitable for Indoor / Outdoor Installation.



Application : Conductor bar can be found on overhead crane runways, hoists,trolleys, conveyors, port cranes and people movers.
